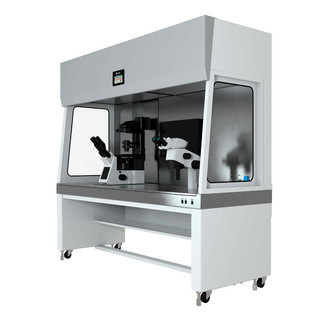

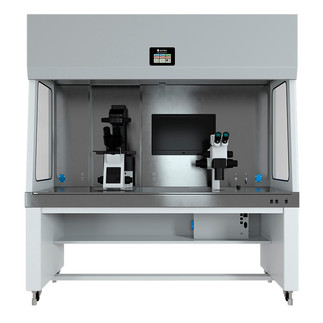

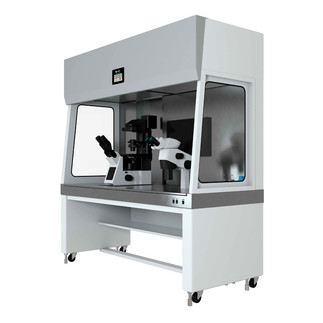

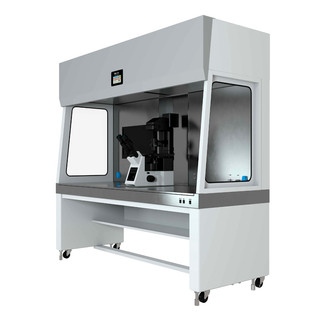

Integrated Bio-Station
Confidence has no Competition
Introducing our most advanced and robust Integrated Bio Workstation, made from Grade A material using globally recognized Japanese workmanship, designed to redefine your IVF lab once and for all.
Features
Completely Customizable
Our unique ability to create and customize your desired workstation goes beyond our competitors reach. We offer a wide variety of options you can select from to meet your daily operations. Consult with our experts to see what we can do for you.
Flexible & Accessible
Light illumination stand of Stereomicroscope can be built-in under the working surface where all the functions are accessible from the working surface. Tell us what stereoscopes you wish to use and we can offer the appropriate fitting mechanism for you.
Touch Screen
Intuitive, easy to use touch-panel conveniently located in the front, which allows temperature, lights and air velocity control with just a touch of your fingertip.
A Workstation that will outlast its users!
Our integrated Bio Workstation is precisely built to reflect our unique and dependable engineering to our customers worldwide. As the leading manufacturer of Bio Medical Equipment in Japan, our main policy & strategy is to use long lasting material in the production of every ASTEC Bio made product leaving our facilities.
Distinct Features
Extra access for CO2, pre-mixed gas, and power plug for additional incubation device for safer handling of your samples.
AIMT-180L
External dimensions (mm) | 1,800 x 1,980 x 750 |
Working surface (mm) | 1,700 x 645 |
Light (LED) | 40W |
Dawn lights | 15W×2 (Variable with 3 intensities) |
Vertical air velocity | 0〜0.4m/sec (Variable with 5 different flows) |
Filter efficiency | 99.99％ or more (0.3μm particle size) |
Cleanliness | Class 100 |
Monitor / Input | 21-inch color monitor standard / HDMI, Display port, D-sub |
Working surface warmer | Variable between 30℃～40℃ |
Glass thermo plate | Variable between 30℃～40℃ |
Power consumption | Weight |
Weight | 260kg |
AIMT-200L
AIMT-200L
External dimensions (mm) | 2,000 x 1,980 x 750 |
Working surface (mm) | 1,900 x 645 |
Light (LED) | 50W |
Dawn lights | 15W×2 (Variable with 3 intensities) |
Vertical air velocity | 0〜0.4m/sec (Variable with 5 different flows) |
Filter efficiency | 99.99％ or more (0.3μm particle size) |
Cleanliness | Class 100 |
Monitor / Input | 21-inch color monitor standard / HDMI, Display port, D-sub |
Working surface warmer | Variable between 30℃～40℃ |
Glass thermo plate | Variable between 30℃～40℃ |
Power consumption | 900W |
Weight | 280kg |
AITT-160L
External dimensions (mm) | 1,600 x 1,980 x 750 |
Working surface (mm) | 1,500 x 645 |
Light (LED) | 40W |
Dawn lights | 15W×2 (Variable with 3 intensities) |
Vertical air velocity | 0〜0.4m/sec (Variable with 5 different flows) |
Filter efficiency | 99.99％ or more (0.3μm particle size) |
Cleanliness | Class 100 |
Monitor / Input | 21-inch color monitor standard / HDMI, Display port, D-sub |
Working surface warmer | Variable between 30℃～40℃ |
Glass thermo plate | Variable between 30℃～40℃ |
Power consumption | 840W |
Weight | 240kg |
AITT-180L
External dimensions (mm) | 1,800 x 1,980 x 750 |
Working surface (mm) | 1,700 x 645 |
Light (LED) | 40W |
Dawn lights | 15W×2 (Variable with 3 intensities) |
Vertical air velocity | 0〜0.4m/sec (Variable with 5 different flows) |
Filter efficiency | 99.99％ or more (0.3μm particle size) |
Cleanliness | Class 100 |
Monitor / Input | 21-inch color monitor standard / HDMI, Display port, D-sub |
Working surface warmer | Variable between 30℃～40℃ |
Glass thermo plate | Variable between 30℃～40℃ |
Power consumption | 880W |
Weight | 260kg |
AITT-200L
External dimensions (mm) | 2,000 x 1,980 x 750 |
Working surface (mm) | 1,900 x 645 |
Light (LED) | 50W |
Dawn lights | 15W×2 (Variable with 3 intensities) |
Vertical air velocity | 0〜0.4m/sec (Variable with 5 different flows) |
Filter efficiency | 99.99％ or more (0.3μm particle size) |
Cleanliness | Class 100 |
Monitor / Input | 21-inch color monitor standard / HDMI, Display port, D-sub |
Working surface warmer | Variable between 30℃～40℃ |
Glass thermo plate | Variable between 30℃～40℃ |
Power consumption | 900W |
Weight | 280kg |
AT-80L
External dimensions (mm) | 800 x 1,980 x 750 |
Working surface (mm) | 700 x 645 |
Light (LED) | 18W |
Dawn lights | 15W×2 (Variable with 3 intensities) |
Vertical air velocity | 0〜0.4m/sec (Variable with 5 different flows) |
Filter efficiency | 99.99％ or more (0.3μm particle size) |
Cleanliness | Class 100 |
Monitor / Input | 21-inch color monitor standard / HDMI, Display port, D-sub |
Working surface warmer | Variable between 30℃～40℃ |
Glass thermo plate | Variable between 30℃～40℃ |
Power consumption | 490W |
Weight | 155kg |
AT-100L
External dimensions (mm) | 1,000 x 1,980 x 750 |
Working surface (mm) | 900 x 645 |
Light (LED) | 20W |
Dawn lights | 15W×2 (Variable with 3 intensities) |
Vertical air velocity | 0〜0.4m/sec (Variable with 5 different flows) |
Filter efficiency | 99.99％ or more (0.3μm particle size) |
Cleanliness | Class 100 |
Monitor / Input | 21-inch color monitor standard / HDMI, Display port, D-sub |
Working surface warmer | Variable between 30℃～40℃ |
Glass thermo plate | Variable between 30℃～40℃ |
Power consumption | 560W |
Weight | 175kg |
AT-130L
External dimensions (mm) | 1,300 x 1,980 x 750 |
Working surface (mm) | 1,200 x 645 |
Light (LED) | 32W |
Dawn lights | 15W×2 (Variable with 3 intensities) |
Vertical air velocity | 0〜0.4m/sec (Variable with 5 different flows) |
Filter efficiency | 99.99％ or more (0.3μm particle size) |
Cleanliness | Class 100 |
Monitor / Input | 21-inch color monitor standard / HDMI, Display port, D-sub |
Working surface warmer | Variable between 30℃～40℃ |
Glass thermo plate | Variable between 30℃～40℃ |
Power consumption | 800W |
Weight | 210kg |
AT-160L
External dimensions (mm) | 1,600 x 1,980 x 750 |
Working surface (mm) | 1,500 x 645 |
Light (LED) | 40W |
Dawn lights | 15W×2 (Variable with 3 intensities) |
Vertical air velocity | 0〜0.4m/sec (Variable with 5 different flows) |
Filter efficiency | 99.99％ or more (0.3μm particle size) |
Cleanliness | Class 100 |
Monitor / Input | 21-inch color monitor standard / HDMI, Display port, D-sub |
Working surface warmer | Variable between 30℃～40℃ |
Glass thermo plate | Variable between 30℃～40℃ |
Power consumption | 840W |
Weight | 240kg |
AT-180L
External dimensions (mm) | 1,800 x 1,980 x 750 |
Working surface (mm) | 1,700 x 645 |
Light (LED) | 40W |
Dawn lights | 15W×2 (Variable with 3 intensities) |
Vertical air velocity | 0〜0.4m/sec (Variable with 5 different flows) |
Filter efficiency | 99.99％ or more (0.3μm particle size) |
Cleanliness | Class 100 |
Monitor / Input | 21-inch color monitor standard / HDMI, Display port, D-sub |
Working surface warmer | Variable between 30℃～40℃ |
Glass thermo plate | Variable between 30℃～40℃ |
Power consumption | 880W |
Weight | 260kg |
AT-200L
External dimensions (mm) | 2,000 x 1,980 x 750 |
Working surface (mm) | 1,900 x 645 |
Light (LED) | 50W |
Dawn lights | 15W×2 (Variable with 3 intensities) |
Vertical air velocity | 0〜0.4m/sec (Variable with 5 different flows) |
Filter efficiency | 99.99％ or more (0.3μm particle size) |
Cleanliness | Class 100 |
Monitor / Input | 21-inch color monitor standard / HDMI, Display port, D-sub |
Working surface warmer | Variable between 30℃～40℃ |
Glass thermo plate | Variable between 30℃～40℃ |
Power consumption | 900W |
Weight | 280kg |
AIM-130L
External dimensions (mm) | 1,300 x 1,980 x 750 |
Working surface (mm) | 1,200 x 645 |
Light (LED) | 32W |
Dawn lights | 15W×2 (Variable with 3 intensities) |
Vertical air velocity | 0〜0.4m/sec (Variable with 5 different flows) |
Filter efficiency | 99.99％ or more (0.3μm particle size) |
Cleanliness | Class 100 |
Anti-Vibration | Passive anti-vibration ready for inverted microscope |
Monitor / Input | 21-inch color monitor standard / HDMI, Display port, D-sub |
Working surface warmer | Variable between 30℃～40℃ |
Glass thermo plate | Variable between 30℃～40℃ |
Power consumption | 800W |
Weight | 210kg |
AIM-160L
External dimensions (mm) | 1,600 x 1,980 x 750 |
Working surface (mm) | 1,500 x 645 |
Light (LED) | 40W |
Dawn lights | 15W×2 (Variable with 3 intensities) |
Vertical air velocity | 0〜0.4m/sec (Variable with 5 different flows) |
Filter efficiency | 99.99％ or more (0.3μm particle size) |
Cleanliness | Class 100 |
Anti-Vibration | Passive anti-vibration ready for inverted microscope |
Monitor / Input | 21-inch color monitor standard / HDMI, Display port, D-sub |
Working surface warmer | Variable between 30℃～40℃ |
Glass thermo plate | Variable between 30℃～40℃ |
Power consumption | 840W |
Weight | 240kg |
AIM-180L
External dimensions (mm) | 1,800 x 1,980 x 750 |
Working surface (mm) | 1,700 x 645 |
Light (LED) | 40W |
Dawn lights | 15W×2 (Variable with 3 intensities) |
Vertical air velocity | 0〜0.4m/sec (Variable with 5 different flows) |
Filter efficiency | 99.99％ or more (0.3μm particle size) |
Cleanliness | Class 100 |
Anti-Vibration | Passive anti-vibration ready for inverted microscope |
Monitor / Input | 21-inch color monitor standard / HDMI, Display port, D-sub |
Working surface warmer | Variable between 30℃～40℃ |
Glass thermo plate | Variable between 30℃～40℃ |
Power consumption | 880W |
Weight | 260kg |
AIM-200L
External dimensions (mm) | 2,000 x 1,980 x 750 |
Working surface (mm) | 1,900 x 645 |
Light (LED) | 50W |
Dawn lights | 15W×2 (Variable with 3 intensities) |
Vertical air velocity | 0〜0.4m/sec (Variable with 5 different flows) |
Filter efficiency | 99.99％ or more (0.3μm particle size) |
Cleanliness | Class 100 |
Anti-Vibration | Passive anti-vibration ready for inverted microscope |
Monitor / Input | 21-inch color monitor standard / HDMI, Display port, D-sub |
Working surface warmer | Variable between 30℃～40℃ |
Glass thermo plate | Variable between 30℃～40℃ |
Power consumption | 900W |
Weight | 280kg |
