H401-NIKON-SMZSL-GLASS/METAL
H601-NIKON-TS2R-GLASS features anti-scratch, anti-fingerprint, chemically strengthened Dragontrail glass cased in rigid aluminum frame.
H601-NIKON-TS2R-GLASS
The Glass T Plate creates a warm and optically transparent surface perfectly flush with the microscope stage. It employs Indium Tin Oxide (ITO) coating to obtain uniform heating throughout the glass surface and a surface sensor to ensure the highest accuracy on temperature reading.
H601-NIKON-TS2R-GLASS features anti-scratch, anti-fingerprint, chemically strengthened Dragontrail glass cased in rigid aluminum frame to ensures the highest resistance against breakage and scratches.
Protected by 10 year warranty on glass damage.
It requires H401-T-CONTROLLER or H401-T-PENNY.
Features
Flush with Nikon stages TC-S-SR, TC-S-SRF and TS2-S-SM
Temperature range: from ambient to 60°C
Accuracy on specimen: ±0.3°C

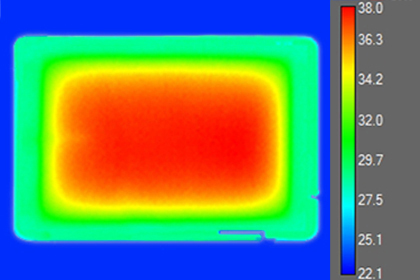

ITO glass coating ensures uniform glass heating
Glass thickness: 0.5 mm
Aluminum frame improves rigidity
Anti-scratch, anti-fingerprint, chemically strengthened Dragontrail glass
10 year warranty on glass damage

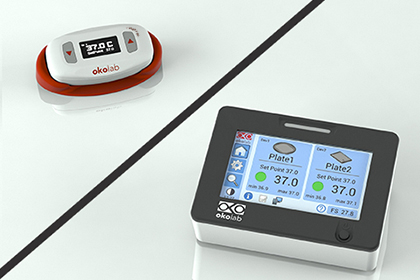

H401-T-CONTROLLER
2-Channel Temperature Controller with 4.3'' touch screen interface compatible with all H401 heating devices. One controller can control independently up to two items.
External temperature sensor (included) and self calibration routines allows easy calibration of the heating devices for the highest accuracy on sample temperature.
On board data logging and download procedures to USB drives allow to record temperature as a function of time and to log calibration events and alarms.
The controller is equipped with password protected routines to re-calibrate the sensors against certified thermometers.
H401-T-PENNY
H401-T-PENNY is a compact single-channel Temperature Controller compatible with any OKOLAB heating device that combines performance and simplicity at an unbeatable price.
Features
Temperature range: from ambient to 60°C
Set point resolution: 0.1°C
Calibration via addition of offset
Maximum Output: 60 W
Dimensions: 83.65x45.05x20.20 mm
Weight: 47.50 g
