ASTEC TrueChrome
Experience True Color with the Powerful HDMI
Experience True Color with the Powerful HDMI Microscope Camera
ASTEC TrueChrome AF is an unprecedented high-speed focusing camera that provides sharp and clear image on your monitor without complexity. The PC-less mouse control software is already installed in the camera, and it is immediately ready to use by simple plug in. This built-in software offers both continuous and single-shot autofocus modes, and it also supports mouse wheel control fine-tuning. Data transfer up to 60 frames per second enables to get clear images with ease. Moreover, this software offers various image parameter adjustments, and users can easily match the monitor image to the eyepiece view.
You can capture images and record movies through the software. All image data is stored in a SD card and users can compare the saved images to the real-time screen.

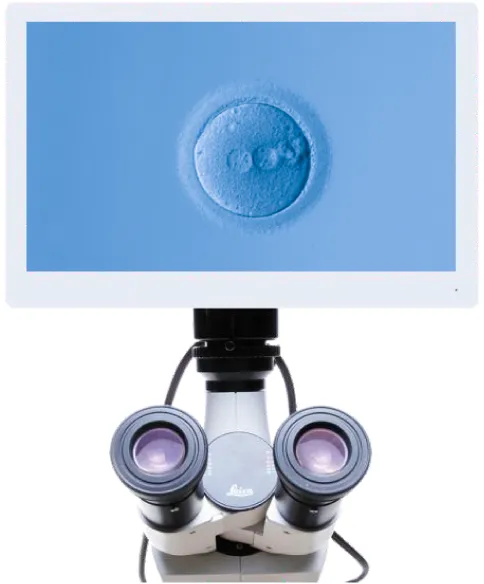

Tailored 1080P HD Retina screen is available as an optional accessory. This screen can be mounted onto the camera to maximize space efficiency.
Specification
ASTEC TrueChrome with the specifications of NLO series
TrueChrome AF
Sensor | CMOS |
Sensor Size | 1/2.8” |
Dynamic Resolution | 2MP, 1920 x 1080 |
Static Resolution | 6MP, 3264 x 1836 |
Frame Rate | 60fps @ HDMI 30fps @ USB2.0 |
Video Recording | 0fps @ PC 30fps @ SD Card |
Exposure Mode | Auto/Manual |
Exposure Time | 0.001s – 10s |
Output Interface | HDMI, USB2.0, SD Card |
Setting | Gamma, Gain, WDR, Noise Reduction |
White Balance | Auto/Manual |
Optical Port | Standard C-Mount |
Size | 90.7 x 78 x 70.8 (mm) |
Retina Screen
Resolution | 1080P (1920 x 1080) |
Display Type | IPS-Pro |
Screen Size | 11.6” |
Aspect Ratio | 16:9 |
Brightness | 320cd/m2 |
Static Contrast Ratio | 1000:01:00 |
HDMI Port | 1 |
Power Supply Type | 12V, 2A |
Size | 282 x 180.5 x 15.3 (mm) |
Weight | 600 (g) |
